Mystery Caps Identified
In my tone cap material types comparison, there were a couple vintage caps which I couldn’t identify. I referred to them anonymously as the Yellow Cylinder and the Fat Gray Cylinder.
Today, a kind gentleman by the name of Bill Zumwalt was able to give me the clues I needed to track these old caps down and unmask their true identities. The search keywords I needed were CDE and Mustard!

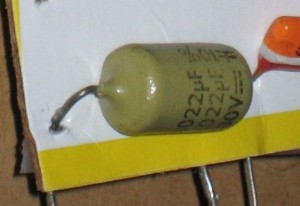

The Yellow Cylinder is a Type WMF 1S22 Polyester Film capacitor with a 100v rating, from CDE Cornell Dubilier. I guess I didn’t think to search for “CDE” – I thought it was an acronym related to the tolerance!
And the Fat Gray is a Mullard/Phillips Mustard polyester foil/film capacitor with a 630v rating. Apparently these were used in some vintage Vox and Marshall amps, and are quite sought after. Who knew!?
So there you go!
